Baseboard 5" - 119
Baseboard 5" - 119

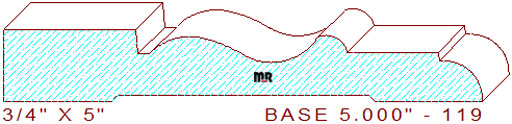

This mid-sized baseboard 5" - 119 measures 5.000" width by .750" thickness, enabling a 5-1/4" wide blank of four-quarter lumber for machining on an industrial-grade molder. The lovely profile contains a 1-3/8" broad horizontal line with a 1/4" vertical step on the top left. The small step connects to a 7/64" sunk fillet that transitions into a graceful two-tangent radius s-shaped curvature with a beak-shaped arc in the center. The unique detail joins a 61/64" line segment with a 3/32" drop in elevation merged with a 13/32"quarter round arch on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.750
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
