Baseboard 4-7/8" - 1
Baseboard 4-7/8" - 1

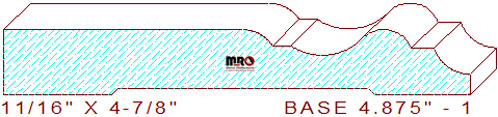

This decorative baseboard 4-7/8" - 1 measures 4.875" width by .687" thickness, requiring a 5-1/8" wide blank of four-quarter lumber for milling on an industrial moulder. The delightful pattern comprises a 2-13/16" broad line with a 3/8" rolled inner edge on the top center. The convex arc connects to a 3/16" wide fillet attached to a 19/32" scotia tangent to a 5/16" convex semicircle with a ¼" broad fillet and a 13/32" cove on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.875
Depth of Cut: 0.663
Bottom Cutter Head
Width: 4.875
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
