Baseboard 4-5/8" - 6
Baseboard 4-5/8" - 6

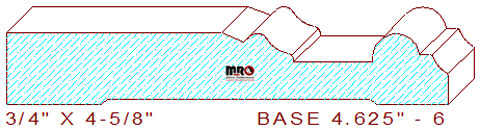

This designer baseboard 4-5/8" - 6 measures 4.625" width by .750" thickness, needing a 4-7/8" wide blank of four-quarter lumber for machining on a commercial moulder. The creative profile comprises a 2-1/4" horizontal line segment joined to a 15/64" downsloping angle on the top left. The canted line connects to a decorative three tangent radius s-shaped curvature merged with a 53/64" sunk fillet in the center. The remaining section consists of a ½" wide half round bead and a 23/64" cove with a 3/64" eased edge on the patterns right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.625
Depth of Cut: 0.605
Bottom Cutter Head
Width: 4.625
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
