Baseboard 4-1/2" - 52
Baseboard 4-1/2" - 52

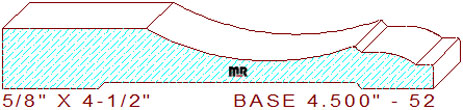

This elegant baseboard 4-1/2" - 52 measures 4.500" width by .625" thickness, necessitating a 4-3/4" wide blank of four-quarter lumber for milling on an industrial-grade molder. The designer profile contains a 1-1/2" broad flat line segment on the top left. The horizontal line connects to a 2-5/8" radius scotia with a slight beveled inside edge in the center. The small angled line attaches to a long 5/8" radius convex arc joined to a 3/16" broad fillet with a 3/64" eased edge, leaving a 1/4" thickness dimension on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.571
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
