WM 709 - WM 714 Base 4-1/2" - 47

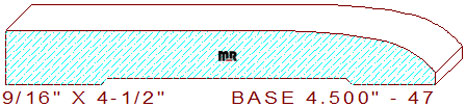

This streamlined baseboard 4-1/2" - 47 measures 4.500" wide by .562" thickness allowing the use of either resawn six or solid four-quarter lumber for milling. The clam-shell shaped profile is composed of a 2-15/16" straight-line tangent off of a 5-7/16" semicircular convex arc and a one-inch radius arc, leaving a 1/8" thickness dimension on the right side of the pattern. The acrylic template can mill up to 5-7/8" in width; this enables all the profile numbers from WM 709 thru WM 714 to utilize the same knife design with a simple radial adjustment of the left cutter head on the machinery.
