Baseboard 4-3/8" - 10

Baseboard 4-3/8" - 10

Baseboard 4-3/8" - 10

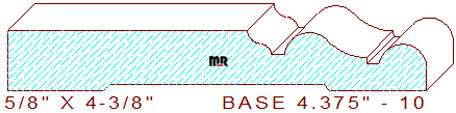

This impressive baseboard 4-3/8" - 10 measures 4.375" wide by .625" thickness, permitting the use of four-quarter lumber for milling on a commercial-grade molder. The well-balanced pattern contains a 2-1/2" broad line segment joined to a small ogee with a 9/64" wide sunken fillet in the center. The flat line merges with a two tangent radius s-shaped curvature, connected to a 1/8" wide by 1/16" deep recessed horizontal line with a 1/2" broad half-circle on the right side of the design.

Try one of our fancy base shoes on the bottom portion of this pattern, find an irresistibly compelling design by simply changing the width search parameters to any desired size in the search boxes provided.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.375
Depth of Cut: 0.548
Bottom Cutter Head
Width: 4.375
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.25
$299.25
Total:
$598.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$319.75
$319.75
Total:
$639.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.25
$340.25
Total:
$680.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
