Baseboard 4-1/4" - 35
Baseboard 4-1/4" - 35
This

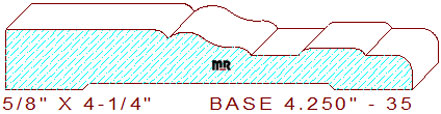

popular baseboard 4-1/4" - 35 measures 4.250" wide by .625" thickness, allowing the detail to be milled from four-quarter lumber. The stylish profile is composed of a 1-11/16" broad flat line with a 5/32" rounded inside edge on the left, connected to a decorative two tangent radius cyma reversa with a 3/16" rounded edge that attaches to a 1/2" wide sunk fillet in the center, joined to an 11/16" wide raised fillet with 1/8" eased edges and a 31/64" broad line segment with a 3/16" round-over on the right side of the pattern. We offer another similar profile in the same width but with different inner dimensions for your review and consideration,
baseboard 4.500" - 34.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.602
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
