Moulding Knives by Mirror Reflections

Moulding Knives
by Mirror Reflections
(801)451-5987

Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Baseboard 4-1/4" - 21

Baseboard 4-1/4" - 21

Baseboard 4-1/4" - 21

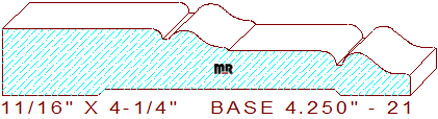

This gorgeous baseboard 4-1/4" - 21 measures 4.250" wide by .687" thickness, authorizing the pattern to be milled out of four-quarter lumber. The striking profile is composed of a 1-43/64" flat line with a 7/64" rounded inner edge joined to a 1/16" wide sunk fillet on the top left, attached to a graceful elevation changing cyma reversa merged with a 1-1/8" horizontal line with a 5/32" roll-over in the center, connected to another 1/16" sunk fillet that transitions into an additional more defined cyma reversa with a 3/64" eased edge on the right side of the design.

Try one of our fancy base shoes on the bottom portion of this pattern, find an irresistibly compelling design by simply altering the width of the parameters to any desired size in the search boxes provided.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$293.00
$293.00
Total:
$586.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$313.00
$313.00
Total:
$626.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$333.00
$333.00
Total:
$666.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
