Baseboard 4" - 66
Baseboard 4" - 66

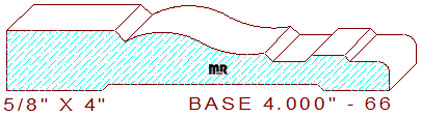

This simply elegant baseboard 4" - 66 measures 4.000" wide by .625" thickness, permitting the pattern to be machined from four-quarter lumber. The decorative profile is composed of a 1-1/8" broad flat line with a 7/64" wide beveled edge on the top left, joined to a 13/16" radius arc tangent to a one-inch concave semicircle creating a cyma reversa with a minor beveled edge in the center, attached to an 11/32" wide sunk fillet and an 11/32" wide raised fillet with 1/16" wide chamfered edges, merged with a 27/64" broad line segment with a 1/8" round-over on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.594
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
