Baseboard 4" - 55
Baseboard 4" - 55

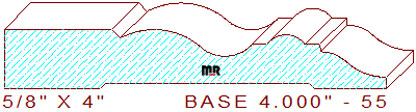

This beautifully sophisticated baseboard 4" - 55 measures 4.000" wide by .625" thickness, enabling the detail to be machined out of four-quarter lumber. The attractive profile is comprised of a 1-1/8" broad straight flat line with a 3/32" wide beveled edge on the top left, joined to a 3/4" radius arc tangent to a 3/8" concave semicircle forming a decorative cyma reversa in the center, attached to a 13/32" wide semicircular arch flanked by two 5/32" wide fillets, merged with a 5/64" vertical drop in elevation and a two tangent radius ogee leaving a 1/8" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.500
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
