Baseboard 3-1/2" - 36
Baseboard 3-1/2" - 36
This

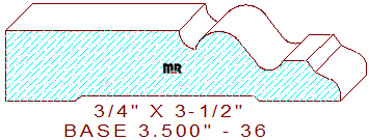

fancy baseboard 3-1/2" - 36 measures 3.500" width by .750" thickness enabling the use of four quarter lumber for milling on an industrial-grade molder. The custom profile contains a 1-13/16" full-line segment on the upper left. The flat line joins a 13/64" cove merged with a downsloping two tangent radius s-shaped curvature in the center. The swoop attaches to a 1/4" broad fillet with an angled edge that transitions into an 11/64" rolled corner on the right side of the design.
Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these milling operations.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
