Baseboard 3-1/2" - 15
Baseboard 3-1/2" - 15
This

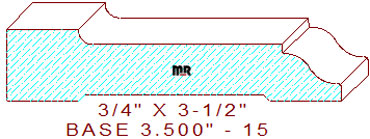

lovely baseboard 3-1/2" - 15 measures 3.500" width by .750" thickness, allowing the use of four-quarter lumber for milling on a commercial-grade molder. The fancy detail contains a 3/4" full-line segment on the top left. Attached to a 2-1/8" wide cong'e derived from a 5/32" concave semicircle with a 3/32" vertical drop in elevation in the center. Attached to a small ogee made from two 5/16" tangent concave and convex arcs with a 3/64" eased corner leaving a 3/16" thickness dimension on the right side of the design.
Caution: the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate for these milling operations.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
