Baseboard 3-1/4" - 63

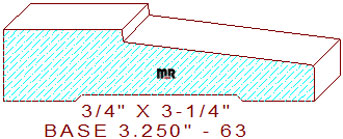

This beveled baseboard 3-1/4" - 63 measures 3.250" width by .750" thickness, enabling the use of a 3-1/2" wide blank of four-quarter lumber for machining on an industrial-grade molder. The canted profile contains a 1-1/4" wide horizontal fillet with a 1/8" vertical step on the top left. The step connects to a 7.125-degree tapered line that transitions the thickness to 3/8" with a 3/64" rolled edge on the design's right side.

We're delighted you found a beautiful profile that interests you; consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you are new to the industry, read some of our informational articles, they will help you get started with all the basics. Our companies have a few things in common: our passion for excellence and a quest to be paramount craftsmen for all our clients.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .566" (top knives) & .062" (bottom cutters).
