Baseboard 3-1/4" - 3

Baseboard 3-1/4" - 3

Baseboard 3-1/4" - 3

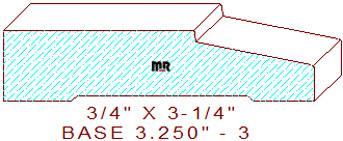

This beveled edge baseboard 3-1/4" - 3 measures 3.250" wide by .750" thickness, permitting the pattern to be machined out of four-quarter lumber. The basic profile is comprised of a two-inch-wide flat line segment with a 1/8" drop-in elevation on the top center, attached to an 11.364-degree beveled line with a 3/64" eased edge, leaving a 3/8" thickness dimension on the right side of the design. We offer an alternative profile with a shorter width chamfer for your review and consideration, base moulding 3.250" - 24.

Are you thinking about possibly building an enclosed tool room for the profile knife grinder, template making machine, and a place to store all your acrylic templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, this small, simple task can save you thousands of dollars in repair cost by not securing the lineal table bearings before moving the machinery.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .553" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
