Baseboard 3-3/16" - 3

Baseboard 3-3/16" - 3

Baseboard 3-3/16" - 3

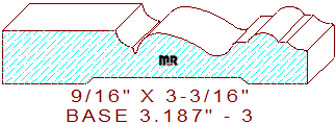

This colonial baseboard 3-3/16" - 3 measures 3.187" wide by .562" thickness, authorizing the pattern to be cut out of four or resawn six-quarter lumber. The traditional profile is composed of a 1-3/16" broad flat line on the top left, connected to a 3/16" cove and a 1/32" wide sunk fillet that transitions into a graceful three tangent radius cyma reversa in the center, attached to a 5/16" wide half round bead flanked by a 5/32" line segment on the left, and a 3/32" fillet on the right, merged with a shallow 7/32" cove with a 3/64" eased edge leaving a 23/64" thickness dimension on the right side of the design. We offer an alternative profile in the same size with different inner dimensions for your review and consideration, base moulding 3.187" - 4.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.375
Bottom Cutter Head
Width: 3.128
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$239.85
$236.90
Total:
$476.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$255.60
$252.41
Total:
$508.01
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$271.35
$267.92
Total:
$539.27
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
