Base Cap 3" - 3
Base Cap 3" - 3

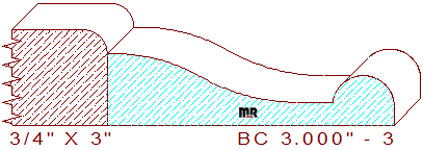

This elegant base cap 3" - 3 measures 3.000" wide by .750" thickness, permitting the use of four-quarter lumber for milling on a commercial-grade molder. The graceful profile will complement a piece of one-inch tall surfaced four sides (S4S) lumber with a 1/4" rounded edge. The detail contains a 1-27/32" convex arch tangent to a 2-1/32" concave arc creating the s-shaped curvature; it joins with a decorative 41/64" broad half-circle on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.709
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
