Base Cap 2-3/8" - 6
Base Cap 2-3/8" - 6
This

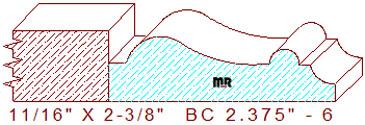

designer base cap 2-3/8" - 6 measures 2.375" wide by .687" thickness, allowing the detail to be milled on an industrial molder from four-quarter lumber. The beautiful profile is composed of a 3/16" broad line segment at a 13/32" thickness dimension on the left, this creates a quirk when applied to a piece of S4S (surfaced four sides) lumber, connected to a lovely two tangent radius cyma reversa that joins to a 5/16" wide half circle, attached to a 7/64" wide fillet with a 1/4" cove, leaving a 3/16" thickness dimension on the right side of the design. We offer a similar profile in the same width but with different inner sizes for your review and consideration,
base cap 2.375".
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.375
Depth of Cut: 0.499
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
