Base Cap 2-5/16" - 3

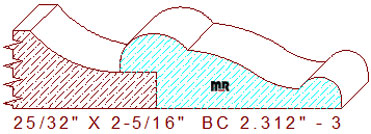

This distinguished base cap 2-5/16" - 3 measures 2.312" wide by .781" thickness, enabling the detail to be milled from four-quarter lumber. The graceful profile is comprised 11/16" wide half-round circle on the left, connected to a beautiful two tangent radius cyma reversa in the center that joins to a 7/16" wide round bead on the right side of the profile, the back side rabbet measures 3/8" wide by 3/8" tall. We offer another similar shape in the same width that was utilized as a panel mould for your review and consideration.

Caution; the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these milling operations. On the left set of blades, we utilize a full 2.375"/60mm cutter head for the rabbet; this allows for multiple axial adjustments on a wide range of patterns.
