Base Cap 2-5/16" - 2
Base Cap 2-5/16" - 2

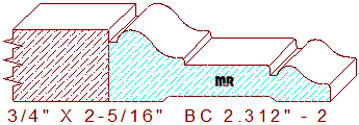

This beautiful base cap 2-5/16" - 2 measures 2.312" wide by .750" thickness, allowing the detail to be milled from four-quarter lumber. The opulent profile is comprised of a 3/32" broad line segment at a 5/8" thickness dimension on the left, this creates a quirk when applied to a piece of S4S (surfaced four sides) lumber when installed, connected to a three tangent radius cyma reversa with a 5/64" vertical drop that joins with a 57/64" flat line in the center, merged with a 5/64" wide by 7/64" deep sunk fillet that binds with another smaller cyma reversa on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.312
Depth of Cut: 0.750
Bottom Cutter Head
Width: 2.312
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
