Base Cap 2-3/16" - 3
Base Cap 2-3/16" - 3

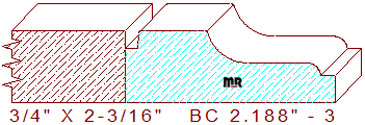

This attractive base cap 2-3/16" - 3 measures 2.187" wide by .750" thickness, allowing machining from four-quarter lumber. The unique profile composes a 1/8" broad line segment at a 9/16" thickness dimension on the left, this creates a quirk when applied to a piece of S4S (surfaced four sides) lumber. The fillet connects to a 47/64" wide by 3/16" tall raised fillet joined to a bidirectional cong'e consisting of a 7/16" cove and a 9/64" radius arc in the center. Attached to a 9/64" broad line segment, leaving a 9/32" thickness dimension on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.188
Depth of Cut: 0.496
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
