Base Cap 2-3/16" - 2

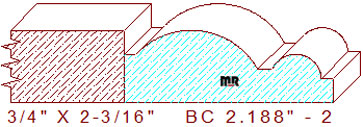

This designer base cap 2-3/16" - 2 measures 2.188" wide by .750" thickness, enabling the detail to be milled from four-quarter lumber. The good-looking profile is composed of a 1/8" wide line segment at a 1/2" thickness dimension on the left, this creates a quirk when applied to a piece of S4S (surfaced four sides) lumber, connected to an elevation changing 1-9/32" wide semicircular arc joined to a 9/64" wide sunk fillet in the center, attached to 33/64" wide elevation changing arc with a 1/8" wide line segment leaving a 1/4" thickness dimension on the right side of the design.
