Backout/Relief Cut 8-1/4" - 4
Backout/Relief Cut 8-1/4" - 4

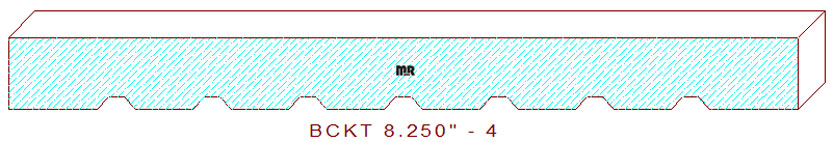

This 8-1/4" - 4 backout measures 8.250" in width. The design comprises seven 13/32" wide by 1/8" deep trapezoid-shaped plows flanked by six 19/32" wide straight fillets in the center, with a 1-1/8" wide fillet on each side edge of the pattern. The maximum width these knives can mill is nine inches wide when the cutterhead is positioned at .000" axially.
We pride ourselves on promptly providing some of the finest quality acrylic templates and profile knives in the woodworking industry, with excellent customer service and affordable pricing. Offer us an opportunity to demonstrate our talent; you will be pleasantly surprised with our craftsmanship.
The current combined high-speed steel knives & template prices are listed below for quoting purposes.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 8.250
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$450.00
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$486.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$522.00
(Template not needed)
