Backout/Relief Cut 8" - 6
Backout/Relief Cut 8" - 6

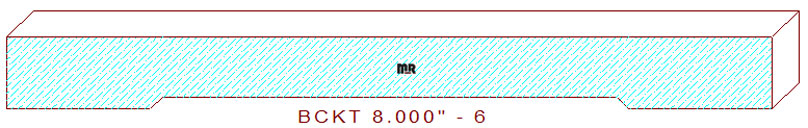

This 8" - 6 backout measures 8.000" in width. The symmetrical pattern comprises a 5" wide by 1/8" deep plow flanked by forty-five-degree slopes with a 1-1/2" wide straight line on each side edge of the profile. The maximum width these knives can mill is 8-3/4" wide with the cutterhead positioned at .000" axially.
All our precision cad (computer-aided design) files contain necessary machine setup and grinding information, all designed to help you save time and money during production. Thanks for allowing us to help enhance a home's exquisite architectural details, one astonishingly gorgeous profile at a time.
The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 8.000
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
