Backout/Relief Cut 6-1/2" - 1
Backout/Relief Cut 6-1/2" - 1

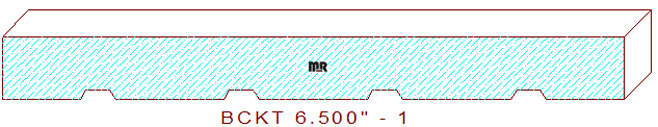

This 6-1/2" - 1 universal backout measures 6.500" wide. This symmetrical half-trapezoid design comprises four 3/8" wide by 3/32" deep plows flanked by three 1-1/8" wide line segments in the center and a one-inch broad fillet on each side edge of the pattern. The maximum width these knives can mill is 7-1/4" wide when the bottom cutterhead is positioned at .000" axially.
Looking for efficiency in your current milling production? Read our commentary on production tips. Have any questions or concerns about knife grinding procedures? Please contact us, we would be honored to assist you.
The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 6.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
