Wall/Partition Cap 3-1/2" - 1

Wall/Partition Cap 3-1/2" - 1

Wall/Partition Cap 3-1/2" - 1

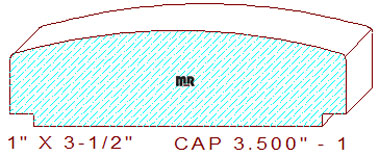

This wall/partition cap 3-1/2" - 1 measures 3.500" wide by 1.000" thickness, with a .455" depth of cut on the top set of cutters and .125" depth of cut on the bottom set of knives.

The stylish symmetrical wall cap is comprised of a 6-1/8" radius arc with 1/16" radius edges on the top portion of the detail, the bottom section consists of a 1/4" wide by 1/8" deep rabbet on each side edge of the pattern creating a quirk when applied to the top of the wall/partition.

Architects, interior designers, lumber mills and moulding manufacturers have been utilizing our wide variety of creative moulding knife designs for years; we trust you will find that special moulding profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
