Architrave/Header 3-1/2" - 7

Architrave/Header 3-1/2" - 7

Architrave/Header 3-1/2" - 7

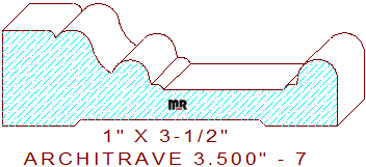

This attractive architrave/header 3-1/2" - 7 measures 3.500" wide by one-inch thickness, allowing the pattern to be machined from five-quarter lumber. The striking profile is composed of a 9/16" wide raised fillet with a sharp edge on the left; you may want to consider using one of our many backband profiles for this detail, connected to a short deep elevation changing two tangent radius cyma reversa with a 25/64" wide half round bead, attached to a 1-15/64" wide off-centered sunk fillet flanked by rounded steps with a 27/64" wide half-circle on the right side of the pattern. We offer a similar profile that is thinner with a shorter depth of cut that can be machined from four-quarter lumber for your review and consideration, casing 3.500" - 87.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind knives for all the prominent brand names of machinery, including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey, and more? Try our exceptional services; you'll be delighted with the results; all the beautiful patterns you manufacture will surely be a cut above the rest.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.671
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.062

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$272.50
$255.50
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$289.50
$272.50
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$289.50
Total:
$596.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
